Mach MS/9120AT Deluxe Pass Through Dishwasher 3 Phase Drain Pump


Availability: In stock


Quick Overview

  • External Dimensions (H x W x D): 1460 x 635 x 735mm
  • Maximum Entry Height: 440mm
  • Power: 3 Phase 400v
  • Tank Capacity: 25Ltr
  • Boiler Capacity: 8.0Ltr
  • Tank Heating Element: 3.0kW
  • Boiler Heating Element: 11.5kW
  • Pump Power: 0.9kW
  • Waste Type: Drain pump included
  • Wash Cycle Time: 90, 120, 150, 210 or 270 Seconds
  • WRAS Approval: Type B Air Gap
  • Warranty: 3 Year Parts

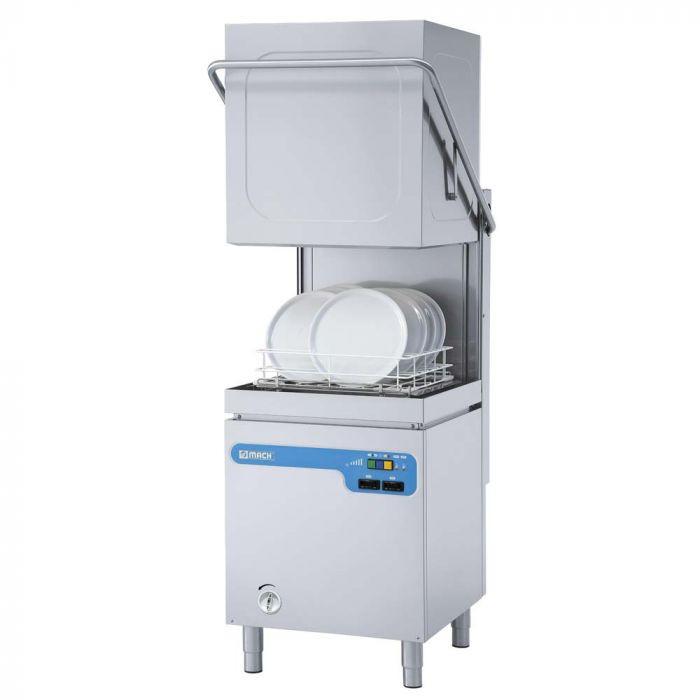

MACH MS/9120AT Deluxe Passthrough Dishwasher 500mm Basket

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • MACH MS/9120AT Deluxe Passthrough Dishwasher 500mm Basket
  • close up


Mach MS/9120AT Deluxe Pass Through Dishwasher with 3 Phase Power & Drain Pump

Mach Passthrough Dishwashers are hard working and are ideal for Schools, Restaurants & Hotels. They maintain the same quality, speed and perfection in washing. All passthrough dishwashers allow the maximum versatility in location through a wide range of accessories and extensions. You can include modular elements from pre-wash and sorting tablets to outlet tablets and more.* Tables and sinks can also be purchased in addition to your passthrough washer and will be found in the accessories section.


All Stainless Steel Components:
AISI304 stainless-steel components including armoured stainless-steel elements, stainless-steel boiler, filters, hinges, wash arms, rinse arms, plugs and jets.

Rinse Booster Pump:
High power secondary pump with soft washing start protects fragile items and improves wash results.

Double Wall Stainless Steel:
Full double wall stainless steel construction for improved sound insulation, better thermal performance and less energy consumption.

Temprature Display:
Digital display of both wash and rinse tempratures for the highest levels of health and safety.

5 Selectable Wash Cycles:
Completely automatic operation with 5 cycles between 90 and 270 seconds. Integrated electronic detergant and rinse aid dispensers.

3 Year Parts Warranty:
Option to add labour warranty with extensive UK service network, quick callout times and all spare parts held in stock.

Partial Water Change:
Atmospheric boiler with partial water change on each cycle. Complete water change every 7 cycles.Maintains highest levels of hygiene.

Front Acess To Drain Pump:
Drain pump as standard with filter access from from panel to prevent nuisance warranty callouts and prevent unecessary breakdowns.
