Mach UT850.23AP Undercounter Utensil Washer 500mm


Availability: In stock

Quick Overview

  • External Dimensions (H x W x D): 860 x 600 x 690mm
  • Maximum Entry: 600 x 400mm
  • Power: 3 Phase 400v or 1 Phase 230v
  • Tank Capacity: 16Ltr
  • Boiler Capacity: 10Ltr
  • Tank Heating Element: 2.5kW
  • Boiler Heating Element: 4.5kW
  • Pump Power: 0.74kW
  • Waste Type: Drain Pump (30mm)
  • Wash Cycle Time: 60, 90, 120, 180 or 360 Seconds
  • WRAS Approval: Type B Air Gap
  • Warranty: 3 Year Parts

* Required Fields


Mach Undercounter Utensil Washer 500mm

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Mach Undercounter Utensil Washer 500mm

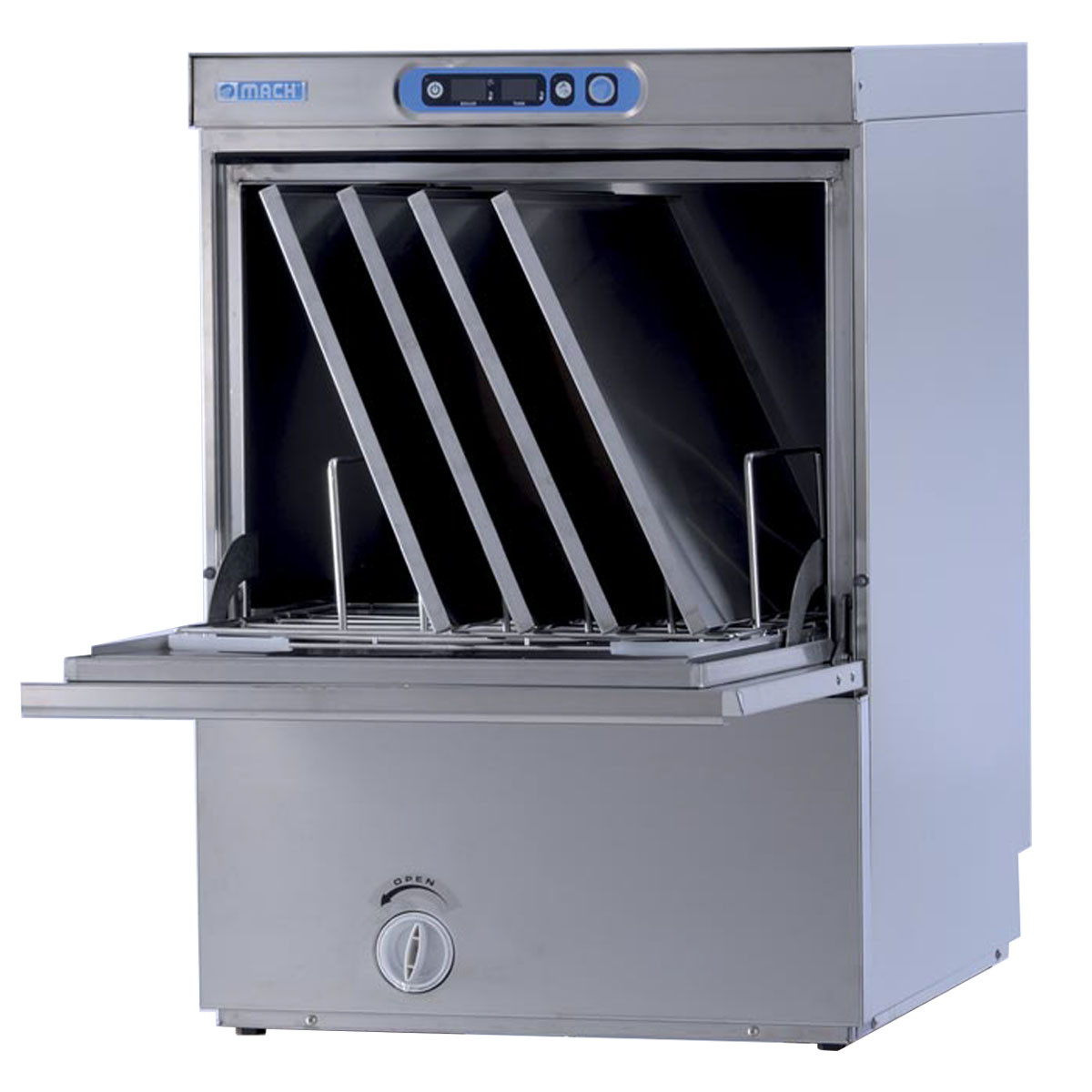

  • Mach Undercounter Utensil Washer 500mm opened with pots
  • Mach Undercounter Utensil Washer 500mm opened with pots


Mach UT850.23AP Undercounter Utensil Washer 500mm Basket

The Mach Tall Utensil Washer has been designed as a universal machine to meet all the dishwashing and utensil washing requirements of a commercial kitchen. With a tall clear-entry height and compact footprint, it can wash gastronorm containers and still fit anywhere a normal commercial dishwasher would.

Featuring a remarkable load capacity, this dishwasher utensilwasher is capable of washing standard 60x40 baking trays and GN 1/1 gastronorm containers. It is also ideally suited for easy installation into existing washrooms, sitting comfortably underneath standard single or double bowl sink tabling or counter tops.

✔ Universal 500mm Stainless Steel Basket

Accepts standard 50cm dishwasher baskets for integration with existing systems.

✔ Touch Screen

Features a 5-cycle touch screen panel with countdown timer and digital thermometers.

✔ Fully Automatic Operation

Equipped with fully automatic operation with micro stop switch if the door is opened. Selectable 60, 90, 120, 180 or 360 second wash cycles with integrated electronic detergent and rinse aid dispensers as standard.

✔ Italian Build Quality

Designed and built in Italy. Armoured heating elements with thermostatic protection in the tank and boiler. Wide range of optional extras and accessories to suit your washing requirements.

✔ Doubled Walled Washing Chamber

Equipped with a double walled chamber for higher thermal efficiency and better acoustic insulation. The moulded wash tank also features rounded corners and edges for easier cleaning.

✔ All Stainless Steel Components

AISI304 stainless steel components including armoured stainless steel elements, stainless steel boiler, filters, hinges, wash arms, rinse arms, plugs and jets.

✔ 3 Year Warranty

3 Year parts warranty as standard with free extended 1 year labour warranty.

Compact Dimensions

The compact dimensions allow it to fit under standard dishwasher tabling, sinks and cabinets.

✔ UK Service & Support

Nationwide UK service & breakdown cover with quick callout times and access to UK spare parts stock.

Here To Help:

All Mach Utensilwashers are highly-configurable and built to order in our Italian factory. Supplied with 1 x 50cm dishwasher basket, 1 x 50cm insert for gastronorm trays, 2 x cutlery holder inserts, waste and water hoses for installation within 1 meter. Water softener is recommended for hard water areas. Should be installed and commissioned by qualified engineer. Speak to one of our expert product consultants to get an all-inclusive quotation.

Dimensions 60W x 69D x 86H
Basket Dimensions 50 x 50cm
Clear Entry Height 41cm
Washing Cycle Time 60, 90, 120, 180 or 360 seconds
Tank Capacity 16 Litre
Boiler Capacity 10 Litre
Water Use Per Cycle 3.8 Litre
Water Pressure Input 1.5 - 3 Bar
Max Inlet Temperature 50c
Tank Heating Element 2.5 Kw
Boiler Heating Element 4.5 Kw
Pump Power 0.74 Kw
Rinse Pump Power 0.30 Kw
Voltage Input 400V 3N/50 or 230V 1N/50
Waste Outlet Drain Pump (30mm)
Water Inlet 3/4 Inch BSP


Additional Information

SKU UT850.23AP
